This specialized utility provides flexible instruments for designing single line electrical wiring diagrams. There is support for multiple types of equipment.
About Hager
Hager is a Windows software that allows users to create custom electrical wiring layouts with several modular devices. It is possible to calculate detailed enclosure size requirements.
Scheme creation

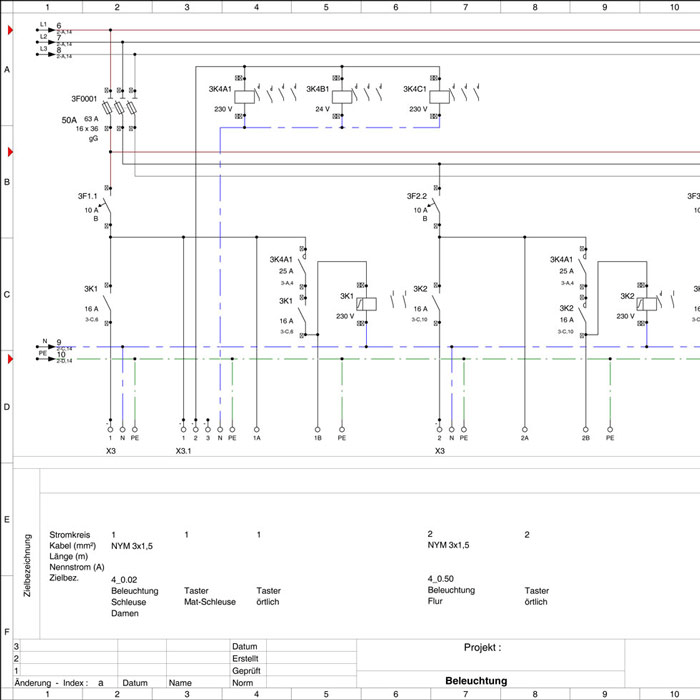

With the help of this application you can create complex schemes for single line installations. The first step is to select the panel type in the main menu. It is possible to view detailed technical characteristics for every available housing option.
The included library contains almost all popular enclosure models. Moreover, there are various electrical modules and parts. Users can review the list of all added components after finishing planning the diagram. It is possible to quickly find the required elements by keywords.
Additional capabilities
You are able to edit included templates and modules. Tools for correcting physical characteristics of any component are provided as well. Schemes are automatically updated in real time after adding new elements. Finished projects can be sent to the printer or saved to the hard drive in several common file formats for further modification in AutoCAD or another similar app.
Features
- free to download and use;
- allows you to create detailed single line electrical wiring schemes;
- the included catalog offers users a large selection of standard enclosure types;
- it is possible to look up new design elements by keywords and filter the results;
- compatible with all modern versions of Windows.
