Hydronics Design Studio
With the help of this engineering program users can perform all calculations that are required for designing residential and commercial hydronic systems.
About Hydronics Design Studio
Hydronics Design Studio is a Windows software that is oriented toward hydro engineers. It contains modules for simulating heat loss, calculating fluid properties and sizing various plumbing pipes.
Main capabilities

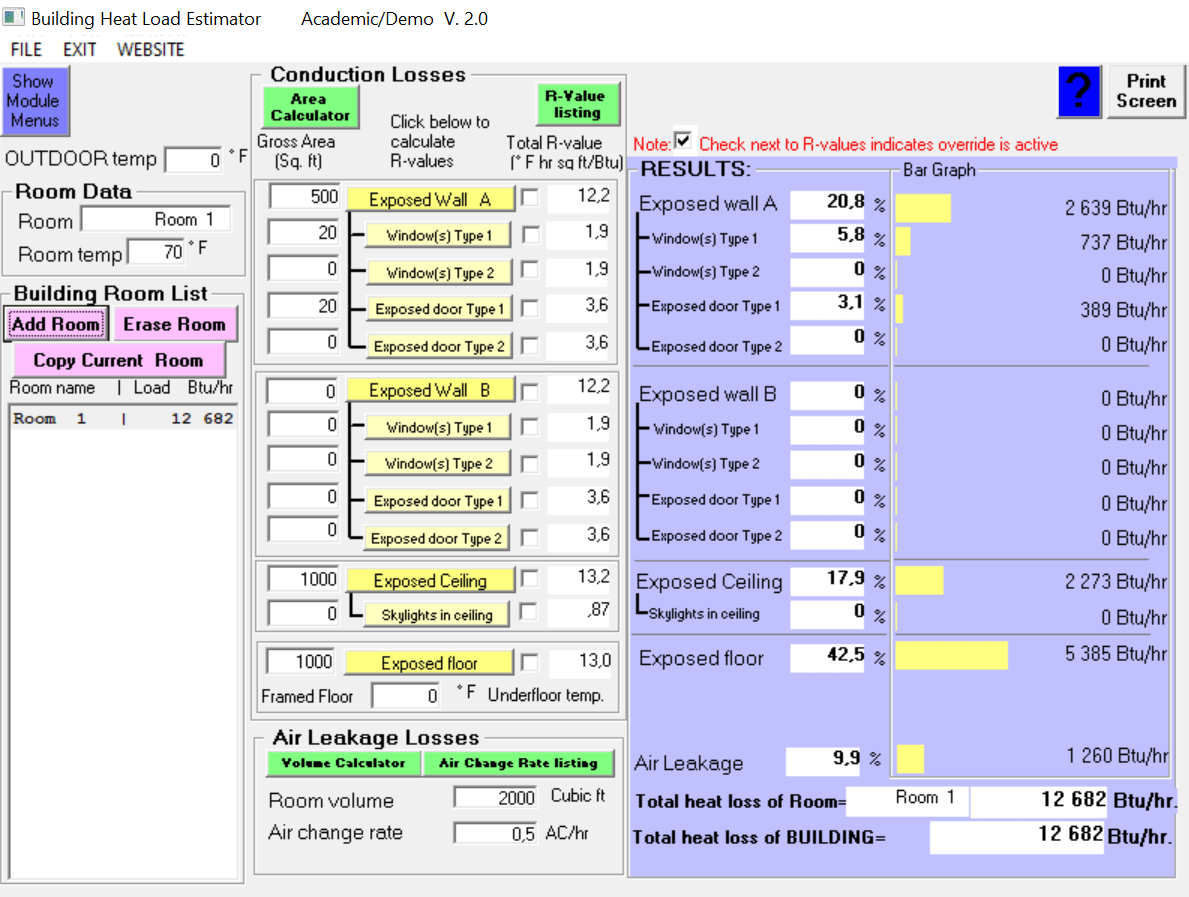

This application allows you to prepare exact heat load estimates for various types of buildings. There is support for modern construction elements like structural insulated panels and protected concrete forms. It is possible to specify different materials for floors, ceilings, walls, windows and doors.
Please note that the free demo version of Hydronics Design Studio contains limited functionality.
Sizing tools
Users are able to calculate the minimum volume of an expansion tank that is necessary for the closed-loop heating system. The amount of needed antifreeze fluid and tubing diameter can be estimated as well.
Like in PipeData PRO, advanced instruments for determining the appropriate size of copper and PLX pipes are provided. You can manually set the maximum flow velocity and adjust fluid temperature parameters. Moreover, there is an option to calculate estimated heat loss, pressure drop and other pipe properties.
Features
- free to download and use;
- offers you professional instruments for calculating various parameters of hydronic systems;
- it is possible to estimate potential heat loss, pressure drop and other pipe attributes;
- there is a large collection of modern insulating construction materials;
- users can determine the appropriate size and length of all plumbing elements;
- compatible with all modern versions of Windows.
FAQ
Which version of Hydronics Design Studio is available?
The catalog currently lists version 2.0. Confirm the version on the source page or in the file properties before installing.
Which Windows versions support Hydronics Design Studio?
The catalog lists compatibility with Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP. Legacy software may require Windows compatibility mode on newer systems.
Where can I safely download Hydronics Design Studio?
Hydronics Design Studio downloads are unavailable until the source or file passes verification.
